Basic Usage

This guide shows you how to build a complete airplane geometry using AeroGeometry.jl. We'll recreate a Cessna 152 by defining its wings, stabilizers, and fuselage.

Installation

using Pkg
Pkg.add("https://github.com/antoniosgeme/AeroGeometry.jl.git")

s

Basic Airfoil Operations

First, let's see how to work with airfoils:

using AeroGeometry
import Plots as plt
plt.plotly()

# Load airfoils from the built-in database
airfoil1 = Airfoil("e221")
airfoil2 = Airfoil("naca6409")

# Blend two airfoils
airfoil3 = blend_airfoils(airfoil1, airfoil2)

# Plot them
plt.plot(airfoil1)
plt.plot!(airfoil2)
plt.plot!(airfoil3)

# Plot the local camber
camb = camber(airfoil3)
plt.plot!(camb[:,1], camb[:,2], lw=3)

Building an Airplane

Now let's build a complete airplane. AeroGeometry provides a utility function ft2m to convert feet and inches to meters:

using AeroGeometry: ft2m

Define the Main Wing

The main wing is defined by creating wing sections at different spanwise locations:

wing_sections = [
    WingSection(
        airfoil=Airfoil("naca2412"),
        position=[0, 0, 0],  # Leading edge location [x, y, z]
        chord=ft2m(5, 4),     # Chord length
    ),
    WingSection(
        airfoil=Airfoil("naca2412"),
        position=[0, ft2m(7), ft2m(7) * sind(1)],  # Add dihedral
        chord=ft2m(5, 4),
    ),
    WingSection(
        airfoil=Airfoil("naca0012"),
        position=[ft2m(4, 3/4) - ft2m(3, 8 + 1/2), ft2m(33, 4)/2, ft2m(33, 4)/2 * sind(1)],
        chord=ft2m(3, 8 + 1/2),
        twist=0  # Twist angle in degrees
    )
]

wing = Wing(name="Main Wing", sections=wing_sections, symmetric=true)

Define the Horizontal Stabilizer

hs_sections = [
    WingSection(
        airfoil=Airfoil("naca0012"),
        position=[0, 0, 0],
        chord=ft2m(3, 8),
        twist=-2  # Negative twist for tail down force
    ),
    WingSection(
        airfoil=Airfoil("naca0012"),
        position=[ft2m(1), ft2m(10) / 2, 0],
        chord=ft2m(2, 4 + 3 / 8),
        twist=-2
    )
]

horizontal_stabilizer = Wing(
    name="Horizontal Stabilizer",
    sections=hs_sections,
    symmetric=true
)

# Move it to the correct position on the aircraft
translate!(horizontal_stabilizer, [4.0648, 0, -0.6096])

Define the Vertical Stabilizer

vs_sections = [
    WingSection(
        airfoil=Airfoil("naca0012"),
        position=[ft2m(-5), 0, 0],
        chord=ft2m(8, 8),
        twist=0
    ),
    WingSection(
        airfoil=Airfoil("naca0012"),
        position=[ft2m(0), 0, ft2m(1)],
        chord=ft2m(3, 8),
        twist=0
    ),
    WingSection(
        airfoil=Airfoil("naca0012"),
        position=[ft2m(0, 8), 0, ft2m(5)],
        chord=ft2m(2, 8),
        twist=0
    )
]

vertical_stabilizer = Wing(name="Vertical Stabilizer", sections=vs_sections)
translate!(vertical_stabilizer, [ft2m(16, 11) - ft2m(3, 8), 0, ft2m(-2)])

Define the Fuselage

The fuselage is created by defining cross-sections at different longitudinal positions:

# Define fuselage cross-section positions and dimensions
xc = [0, 0, ft2m(3), ft2m(5), ft2m(10, 4), ft2m(12, 4), ft2m(21, 11)]
zc = [ft2m(-1), ft2m(-1), ft2m(-0.85), ft2m(0), ft2m(0.3), ft2m(-0.5, 4), ft2m(0.2)]
radii = [ft2m(0.1), ft2m(1.5), ft2m(1.7), ft2m(2.7), ft2m(2.3), ft2m(1, 4), ft2m(0.7)]
shapes = [2, 3, 7, 7, 7, 5, 3]  # Shape parameter for cross-section

fuse_sections = [
    FuselageSection(radius=radii[i], center=[xc[i], 0, zc[i]], shape=shapes[i])
    for i in eachindex(xc)
]

fuselage = Fuselage(name="Main Body", sections=fuse_sections)
translate!(fuselage, [ft2m(-5), 0, ft2m(-3)])

Assemble the Complete Airplane

Finally, combine all components into a single airplane:

airplane = Airplane(
    name="Cessna 152",
    wings=[wing, horizontal_stabilizer, vertical_stabilizer],
    fuselages=[fuselage]
)

# Visualize it
plt.plot(airplane)

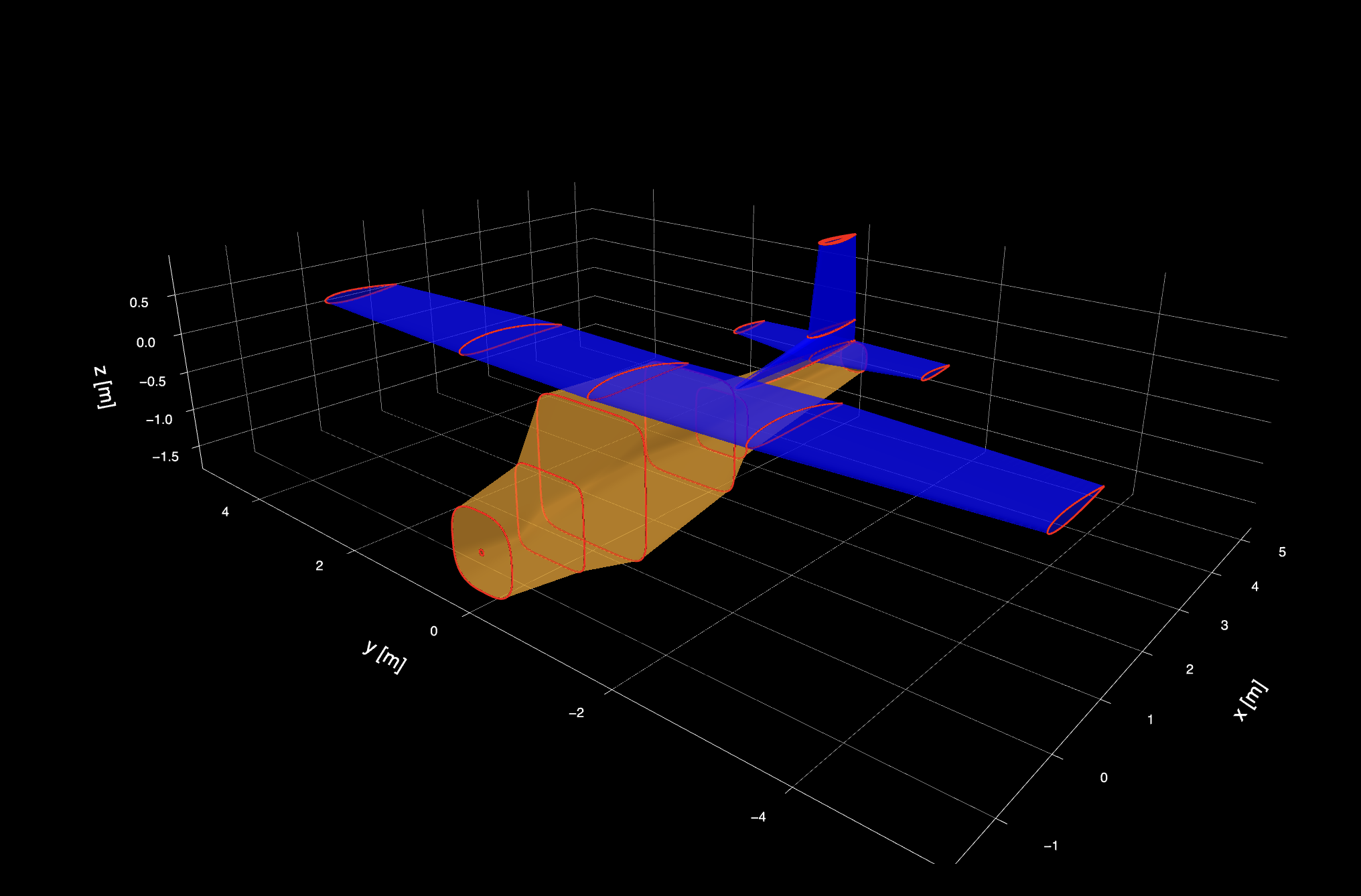

Cessna 152

Next Steps

Now that you have a complete airplane geometry, you can:

  • Export it for use in analysis tools
  • Modify dimensions and airfoil shapes
  • Add control surfaces
  • Create mesh representations

Check out the Reference documentation for details on all available functions and types.
