Examples

FitzHugh–Nagumo Model

The FitzHugh–Nagumo model is a simplified model of neuronal excitability. Its phase-plane dynamics are described by the system

\[\dot{v} = \frac{v - w - v^3 + s}{\varepsilon}, \qquad \dot{w} = \gamma v - w + \beta,\]

where $v$ is the membrane potential, $w$ is a recovery variable, and $(\varepsilon, s, \gamma, \beta)$ are parameters.

using UniformStreamlines
using CairoMakie

struct FitzhughNagumo{T}
    ϵ::T
    s::T
    γ::T
    β::T
end

# Two-argument form used internally; single-argument wrapper passed to evenstream
f(x, P::FitzhughNagumo) = Point2f(
    (x[1] - x[2] - x[1]^3 + P.s) / P.ϵ,
     P.γ * x[1] - x[2] + P.β,
)

P = FitzhughNagumo(0.1, 0.0, 1.5, 0.8)
f(x) = f(x, P)

str = evenstream(-1.5:1.5, -1.5:1.5, f, min_density = 3, max_density = 7)

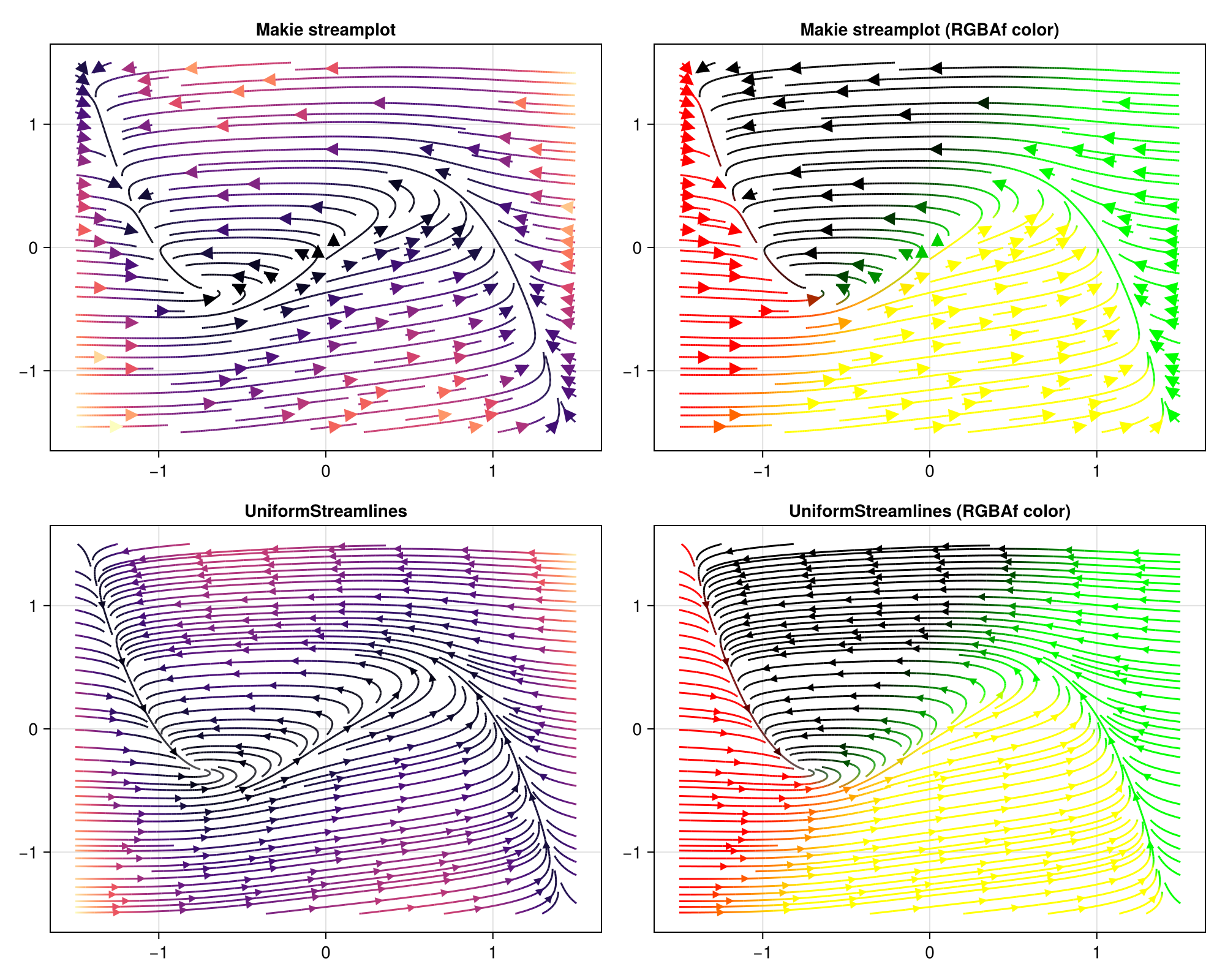

The four panels below compare Makie's built-in streamplot with UniformStreamlines. The bottom row uses colorize to colour the lines by speed (:norm) and by velocity direction (custom RGBAf function):

fig = Figure(size = (1000, 800))

# Row 1 — Makie streamplot
ax11 = Axis(fig[1, 1], title = "streamplot (:magma)")
streamplot!(ax11, f, -1.5..1.5, -1.5..1.5, colormap = :magma)

ax12 = Axis(fig[1, 2], title = "streamplot (RGBAf color)")
streamplot!(ax12, f, -1.5..1.5, -1.5..1.5, color = p -> RGBAf(p..., 0.0, 1.0))

# Row 2 — UniformStreamlines
c      = colorize(str, :norm)
colors = colorize(str, (p, v) -> RGBAf(v[1], v[2], 0.0, 1.0))

ax21 = Axis(fig[2, 1], title = "UniformStreamlines (:norm → :magma)")
streamlines!(ax21, str; color = c, colormap = :magma, with_arrows = true, arrows_spacing = 0.4)

ax22 = Axis(fig[2, 2], title = "UniformStreamlines (RGBAf color)")
streamlines!(ax22, str; color = colors, with_arrows = true, arrows_spacing = 0.4)

fig
